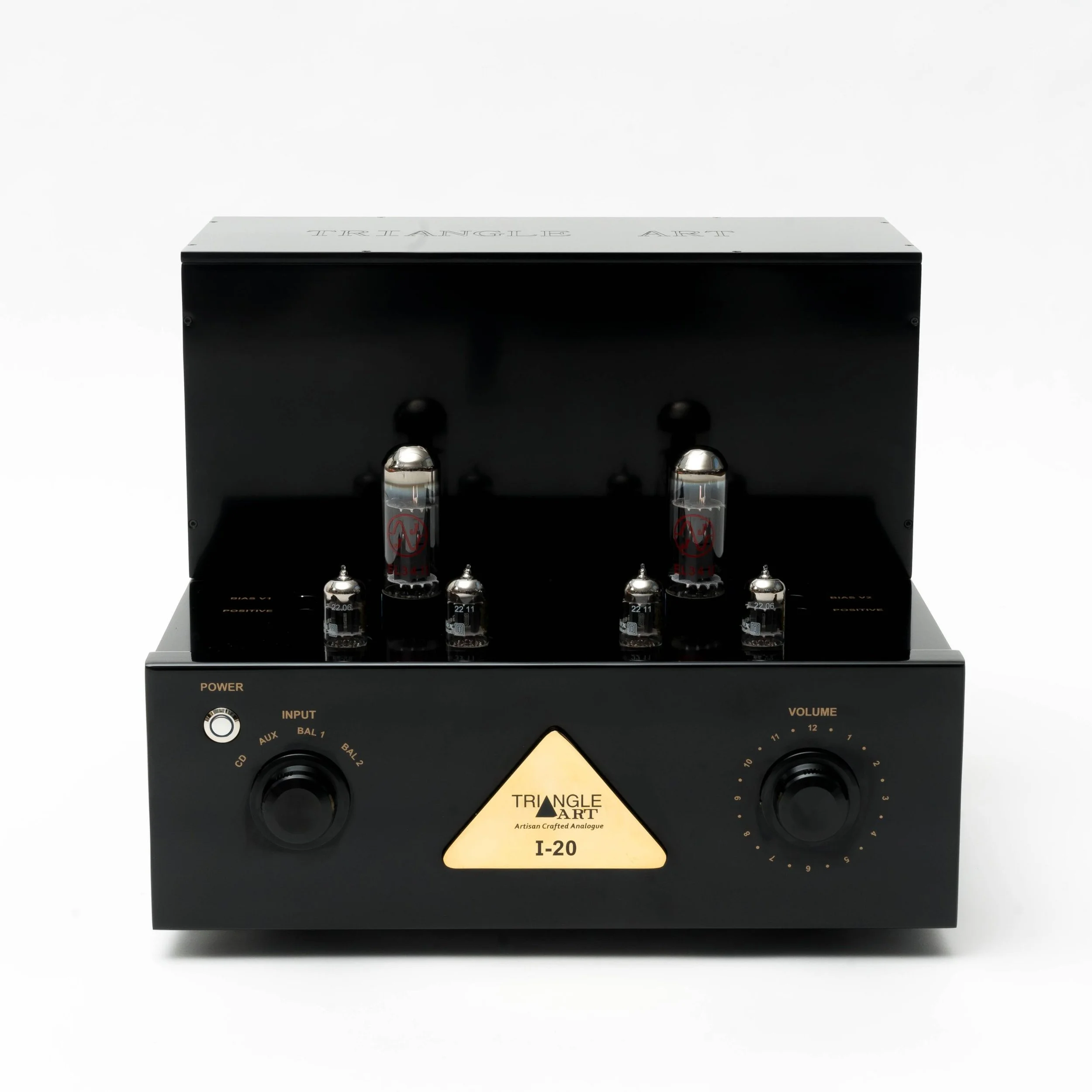

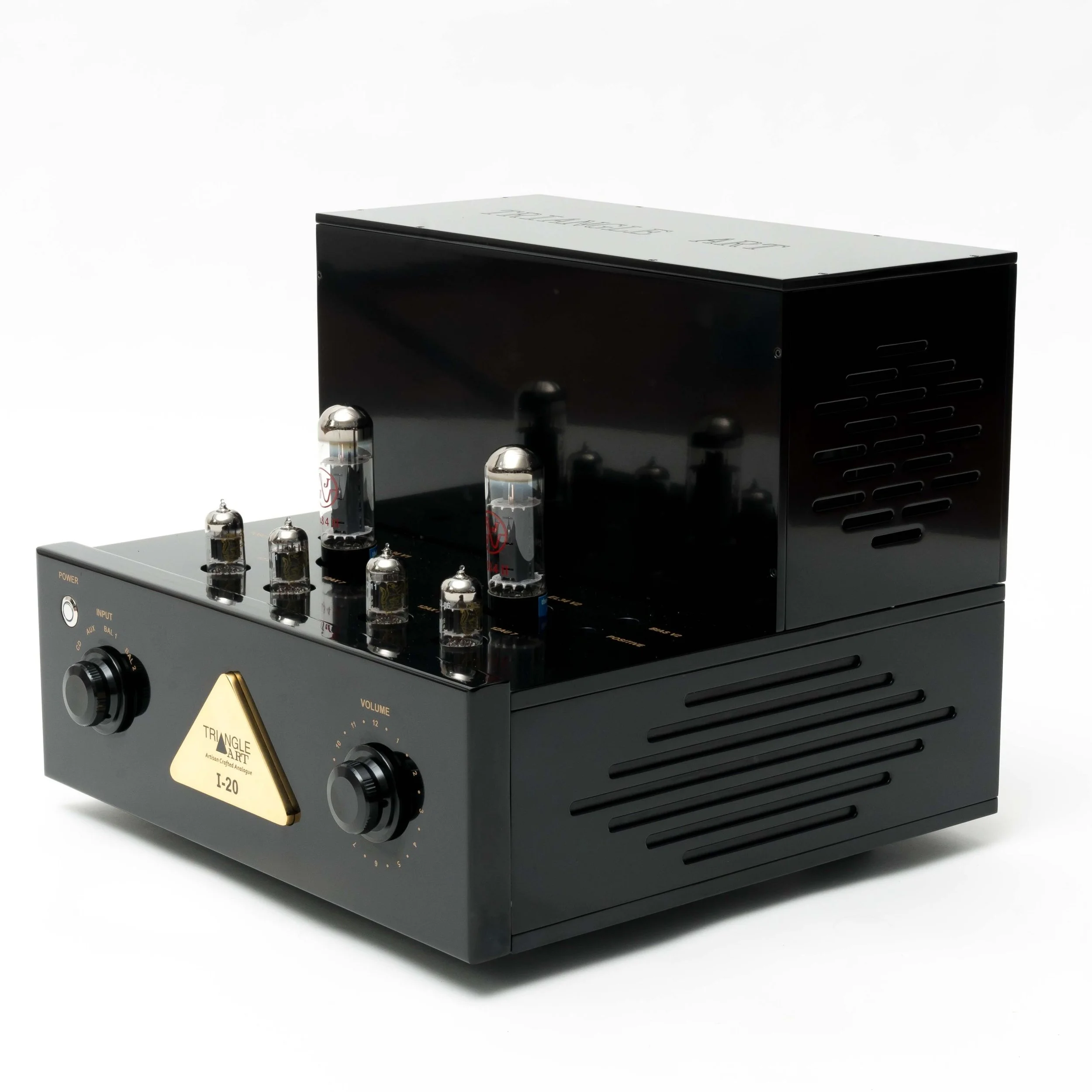

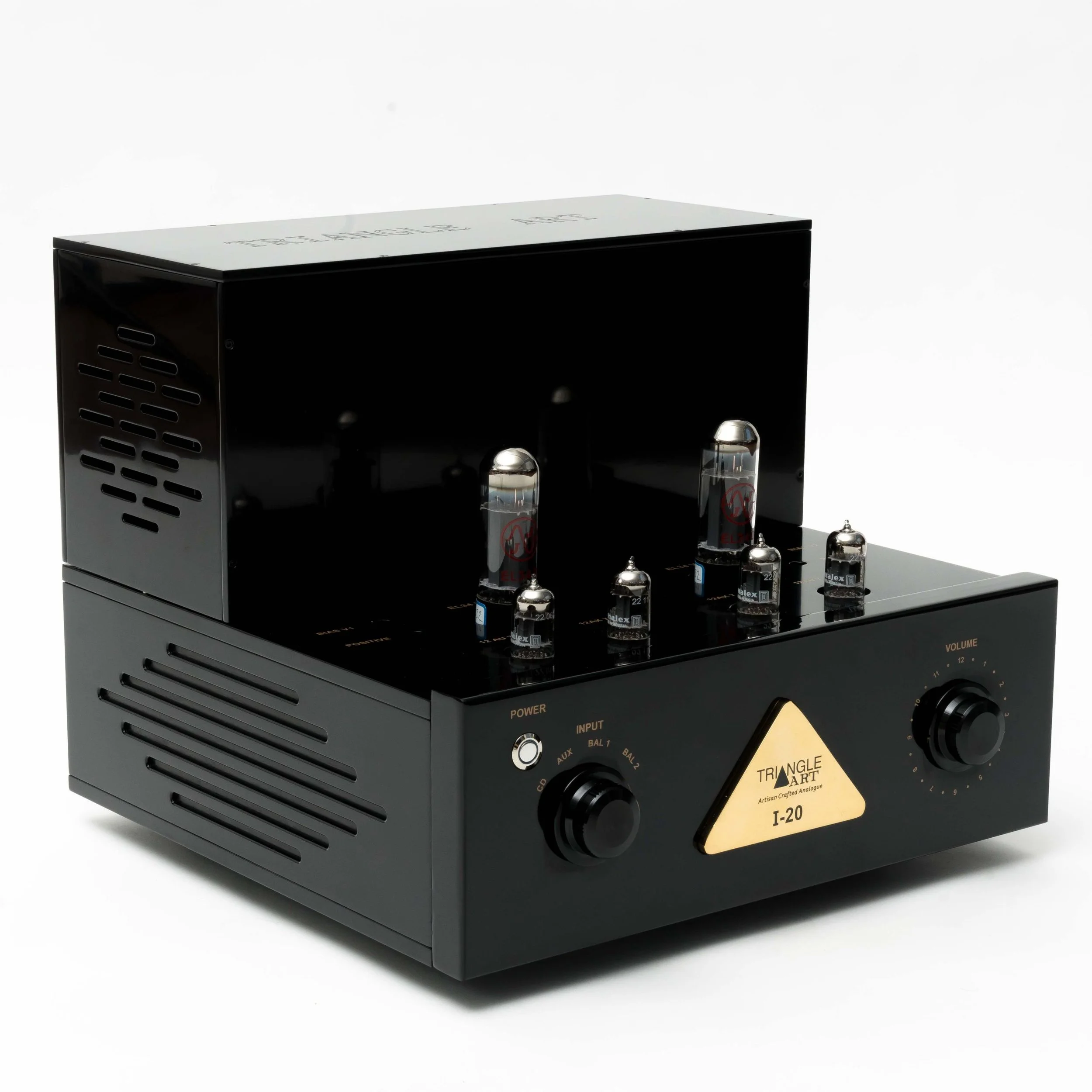

TRIANGLE ART I-20 SINGLE ENDED INTEGRATED AMPLIFIER
The TriangleART I-20 Single-Ended Integrated Amplifier boasts a time-honored circuit configuration with elegant topologies and power designs dating to the golden age of Hi-Fi. Single-ended configurations are gracefully simple with a very short signal path and extraordinary purity. This design emphasizes fidelity and accuracy, using a single output triode to handle the entire audio signal in pure Class A.
The I-20 Single-Ended Integrated features a high plate voltage, high screen voltage acceleration, lower electron cloud density, and lower cathode current to improve power output efficiency by 80% compared with standard Class A Triodes. This design allows signal amplitude to undergo velocity modulation rather than simply adding and subtracting with a constant current signal as utilized in standard Class A. Also, our design increases sensitivity and requires minimal drive current. One EL34 tube can produce up to 20 watts with one section of 12ax7 running less than 1mA of current through it and 35mA with 650v on the EL34 plate.

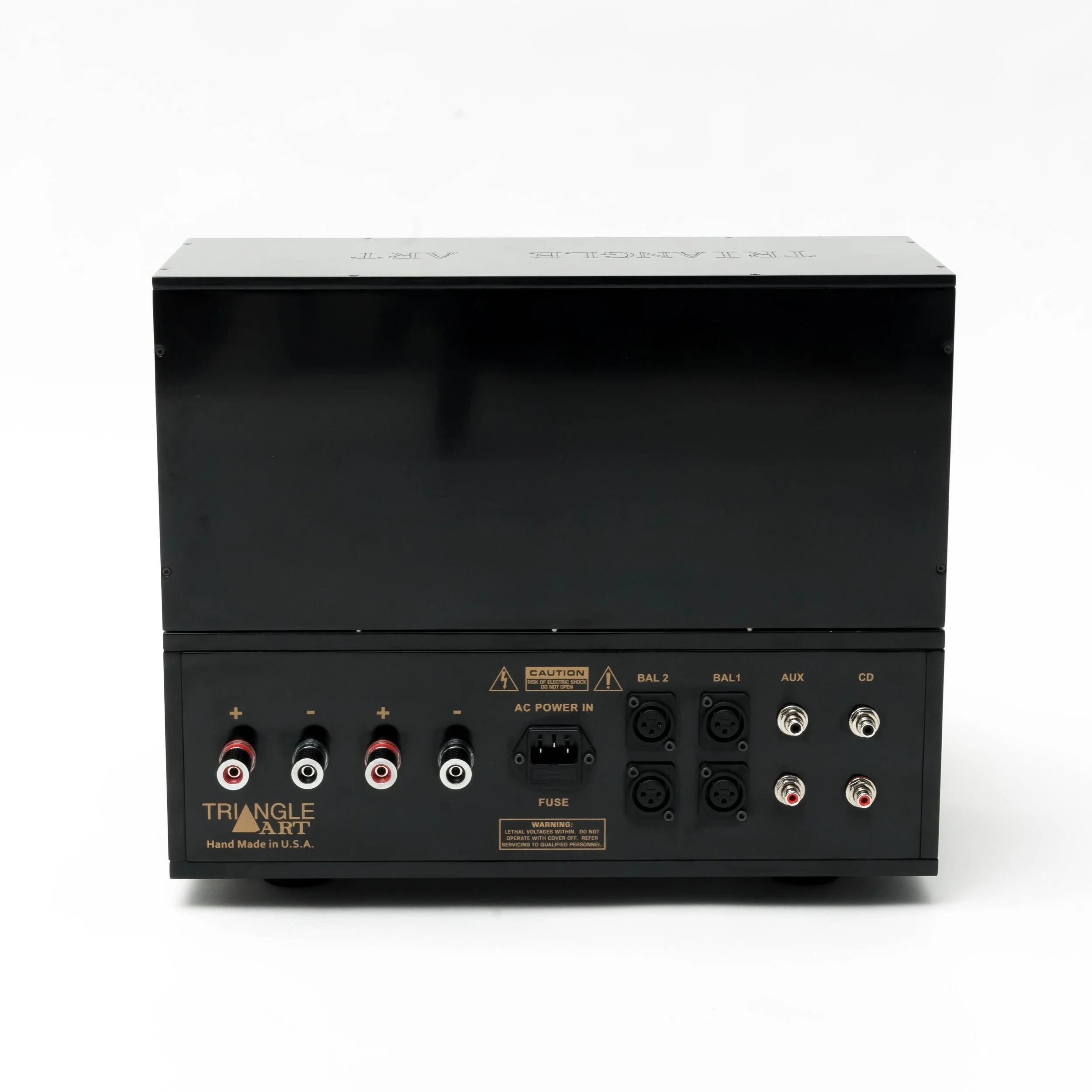

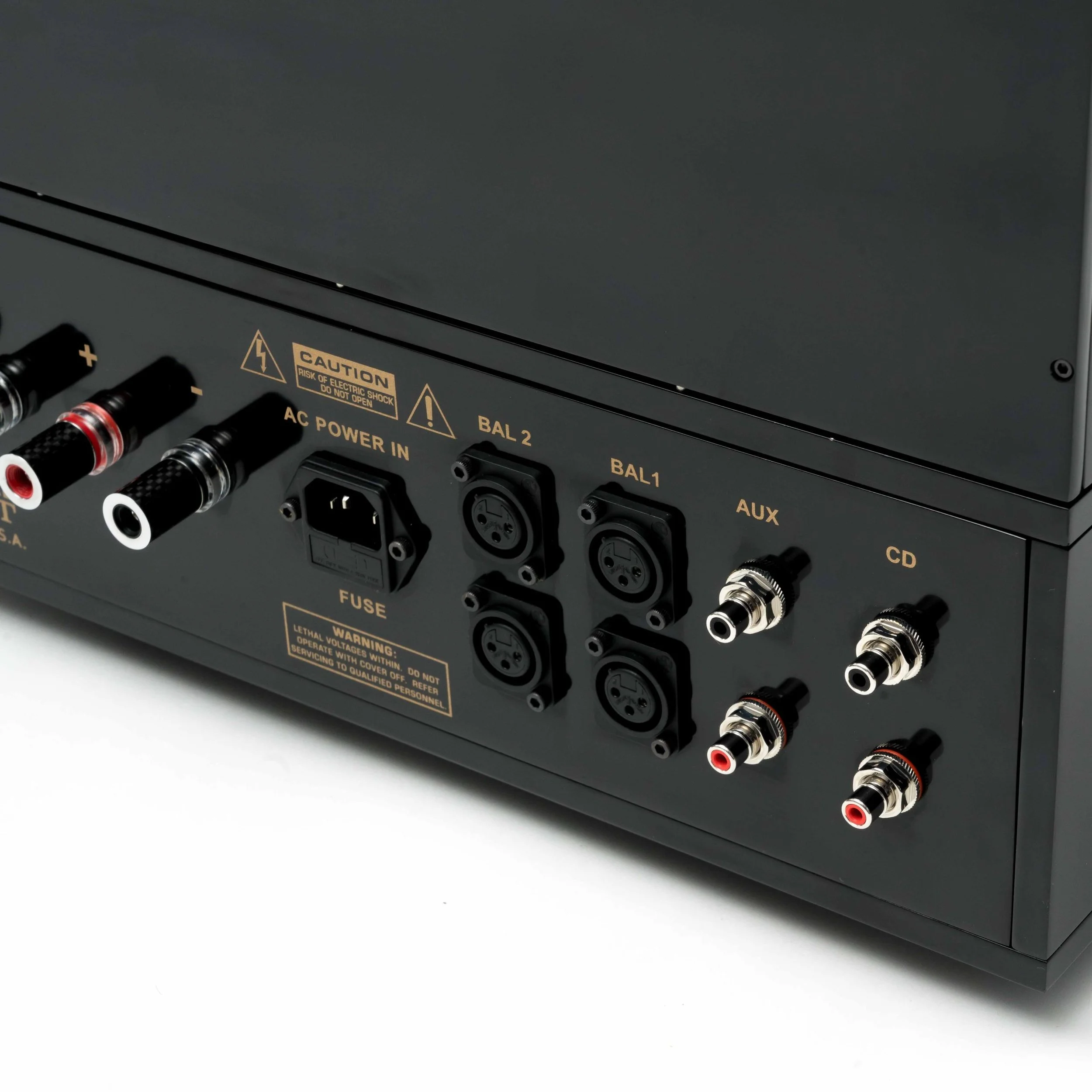

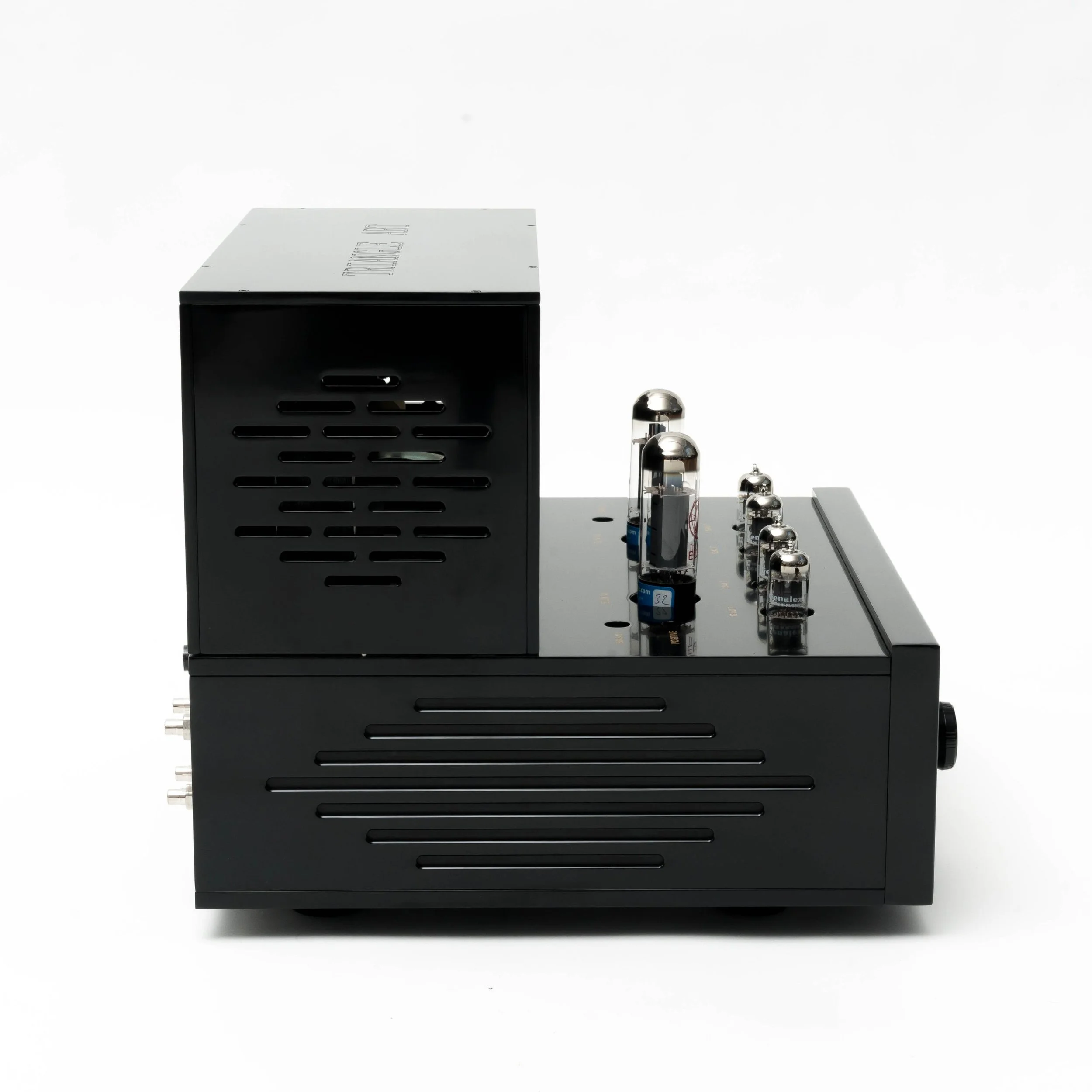

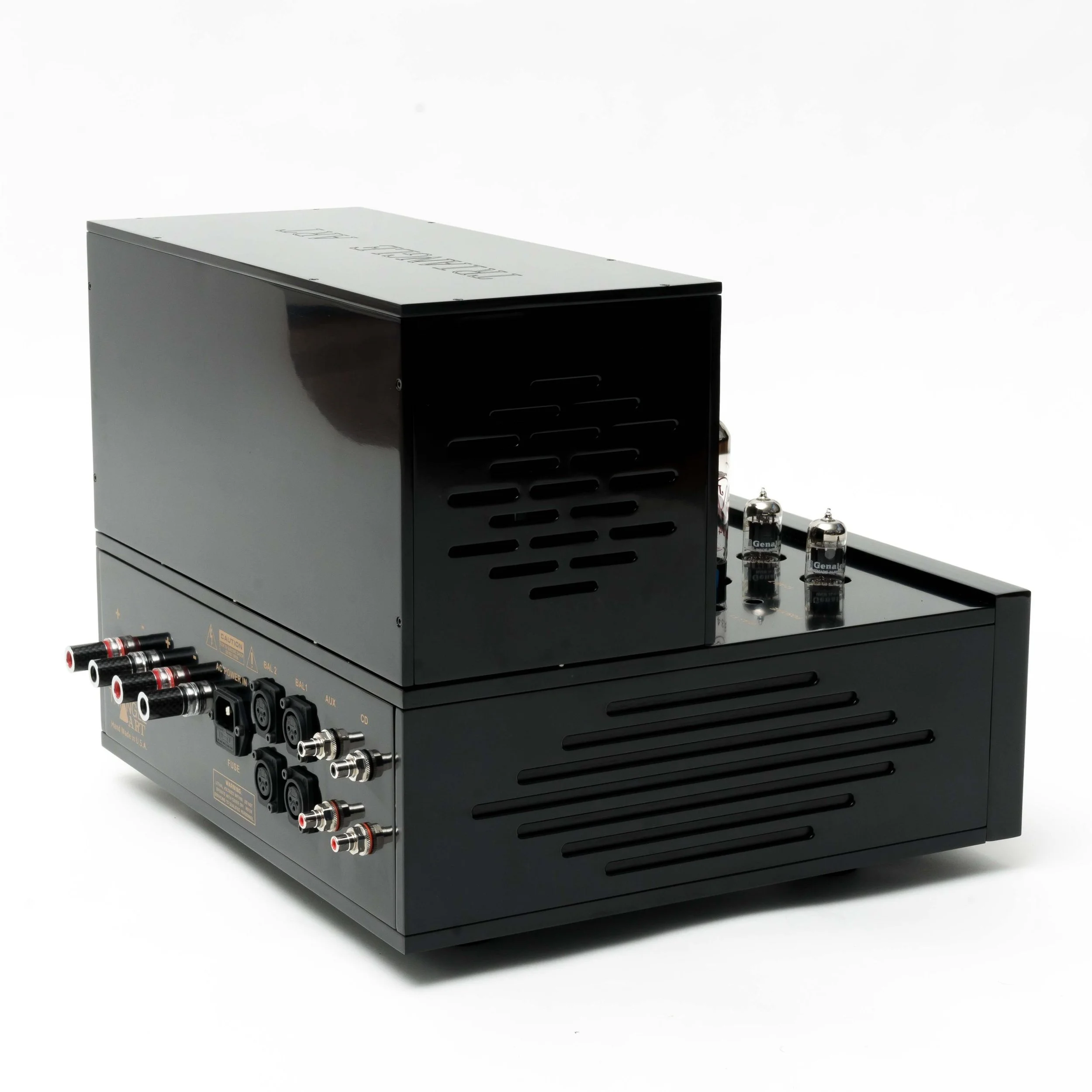

Meticulously fabricated, the I-20 features a heavy-duty aluminum chassis with a one-inch thick faceplate and 3/8ths thick panels on all other sides. We use fine electronic components, high-quality silver wiring, 2.5mm circuit board using solid 4oz copper plating for optimal signal flow. Equipped with Mundroft capacitors, AMRG and Vishay resistors, Elma volume control, and input selector, the I-20 offers two pairs of RCA inputs and two pairs of XLR inputs.
Design Highlight and Specifications:
Single-ended integrated amplifier
Zero global feedback design
Indirectly heated cathode output pentode
Minimized signal path
Full dual-mono construction
Twin EL34 tube output section
Driver section uses two 12AX7 tubes and two 12AU7 tubes for the line-stage
Hand-coiled, balanced output transformer
Hand assembled, fully modular chassis
Rhodium-plated Teflon-insulated RCA input connector
Precision CNC Machined
One-inch thick aluminum front panel, all other panels three-eighths inch aluminum
20 watts pure Class A power
Frequency Response: 20Hz–20kHz
Gain: 40dB
Sensitivity: 200mV (full power); 30mV (1W)
Rise time: 13μS
Noise and Hum: 25μV RMS input referred
Distortion: THD+N: 0.58% at 1W; IMD: 2.5% at 1W
Operating Voltage: 115V/60Hz or 230V/50Hz
Power Consumption: Idle 92W (0.8A at 115VAC); Maximum 115W (1A at 115VAC)
Dimensions: 16” wide x 14” deep x 11” high
Weight: 70lb
More information at triangleart.net
