QLN PRESTIGE THREE LOUDSPEAKER

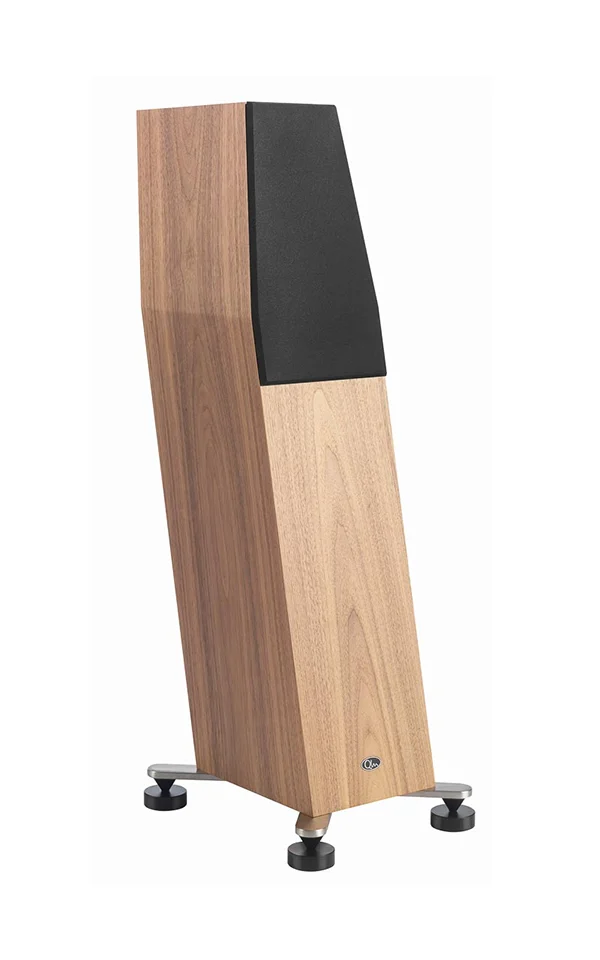

Qln Prestige Three is a 2-way floor standing speaker.
Based on the classic Qln Signature 3 design. Such as time alignment leaning baffle, minimised baffle area around the dive units.
Prestige Three offering refined speaker engineering at the pinnacle of a classic 2-way speaker design.
Incorporating over four decades of speaker research, development, design and construction, the Qln Prestige Three carries the legacy of a timeless combination of form, function and performance. Re-engineered to provide an unprecedented high-end 2-way floor-standing audio transducer, presenting truly enticing audio reproduction without any impediment or compromise, packaged in perfect symbiosis and harmony.
The Qln Prestige Three is a 2-way floor standing design where many parts have been sourced from the Qln Signature 3. Cabinet design are at the core of the design principal. Crossover have been redesigned and major parts have been improved due to our experience and many hours of listening tests to seek the best sound matches for this speaker. Every speaker models are unique and every component are carefully selected and matched to each other for the very best sound performance.
As with previous Qln designs. Priority has been set around getting technology out of the way to make music lovers be able to effortlessly concentrate on enjoying the magic of listening to music. Performed by stereo equipment at the very far end of the performance spectrum. At Qln we believe the music should always be in the forefront, not the stereo equipment.
Cabinet and crossover

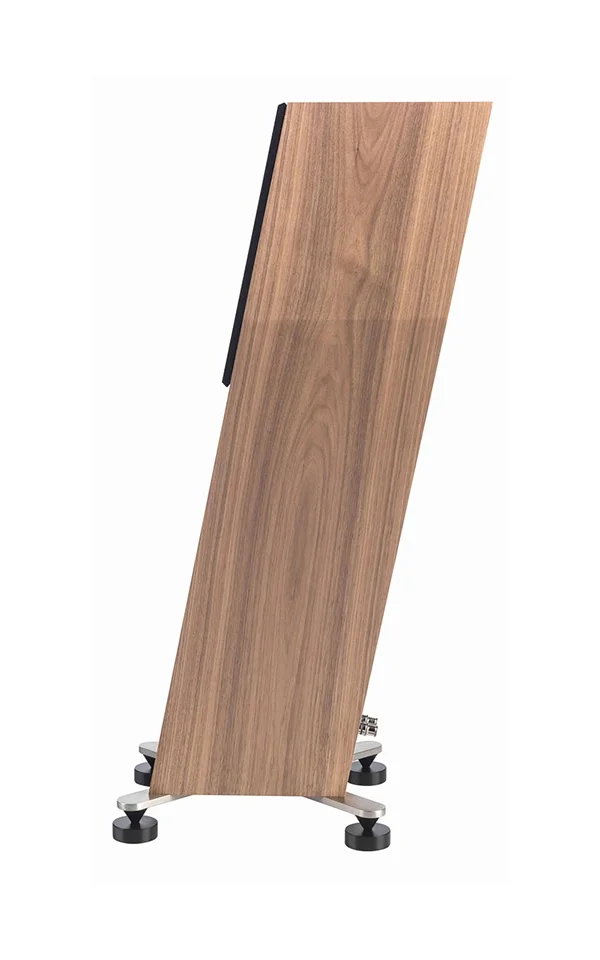

A slanted baffle provides perfect time alignment between woofer and tweeter. The truncated pyramid cabinet top with its minimised baffle area suppresses any standing waves inside the cabinet also offering improved 3D imaging.
By again basing the cabinet construction around Qln’s unique Qboard® technology, structural resonances are eliminated. The bass reflex port with its trumpet shape at both ends eliminates air turbulence.
Cabinet is de-coupled from the floor via solid feet with cones and pucks constructed out of hard, high damping materials.
The constant impedance crossover has been completely redesigned and hardwired with non-inductive capacitors for the tweeter part and high-end oil-filled capacitors for the woofer part with flat foil inductors used at the most critical places. All components are fastened with damping glue and remaining coils are baked to avoid any internal component and filter resonances. Resistors with high power handling capabilities offer lower noise and temperature stable performance, altogether resulting in perfect timing within the crossover and with low noise throughout the entire frequency range.
Treble and bass/midrange drivers
The bass/mid range and treble drivers have been specifically selected and custom developed by industry renowned Danish driver manufacturer Scan Speak and offer the latest in 21st century advanced driver technology.
The unique coated Kevlar® bass/midrange driver with its built-in copper rings in the magnet system offers symmetric drive and higher dynamics in the midrange concurrently suppressing intermodulation distortion and resulting in industry leading high-end voice handling and astonishing micro/macro dynamics from a 2-way speaker design. The long stroke woofer with 19mm long voice coil work in a perfect match to the large inner volume that give powerful bass below 30Hz.
Likewise, the unique tweeter offers superb vocal rendition and excellent imaging at all listening positions. Its large roll surround and textile dome diaphragm provides a flat frequency response above 30 KHz with outstanding off-axis dispersion. The unique AirCirc magnet system and its rear chamber eliminate any reflections and resonances.
Cables and speaker connectors
Internal cabling is our own specially design and produced in Sweden. Solid core pure copper wires are wrapped around a polypropylene core with polypropylene isolation. All components are carefully hand selected and individually tested for any deviances. Speaker terminals are WBT Nextgen® connector with minimal connection material are used for lower distortion made of silver/copper material.
All parts have one thing in common. Non-resonant behaviour from connector, cables, crossover, speaker drivers through the cabinet with the damping feet. This suppresses disturbing noise, offering more and better dynamics with better silence between the tones thanks to the lower noise floor.
The Prestige Three presents a more relaxing sound with remaining details – nothing is added – just pure music!
Impedance: 8 ohms
Amplifier requirements: 25-250 Watt RMS
Tweeter: 25mm wide surround, AirCirc magnet, soft dome
Woofer: 177mm Kevlar® cone
Sensitivity: 87,5 dB SPL 1 Watt 1m
Low frequency performance: -3dB 28Hz
Cabinet: Qboard® Technology
Terminal: Single wire, WBT Nextgen®
Dimensions (HxWxD): 900x210x420mm, with feet 954x310x483
Weight: 27,0 kg each
Finish: Walnut Piano, Walnut matt, White satin
