LAMM INDUSTRIES LP2.1 PHONO PREAMPLIFIER

Dual Monaural Pure Tube Phono Preamplifier. Sold as One Unit.

A Topology Dedicated to the Essence of Natural Sound

Graceful and sophisticated design elements are immediately visible with the LP2.1—a dual-mono, vacuum tube phono preamplifier with two electrically and mechanically separated channels that brings out the most natural of sound performances in the audio pathway.

Design Elements

Model LP2.1 is the next generation of the original LP2 — the first in the line of LAMM phono preamplifiers.

The LP2.1 features the following upgrades and modifications in comparison to the LP2:

• Introduction of many technical solutions that had been implemented in the LP1 Signature (just like the ML2.2 single-ended power amplifier derived many of its technical solutions from the ML3 Signature power amplifier)

• Introduction of the new tubes: 6C3P and 6C45P-E (same tubes that used in the LP1 Signature phono preamplifier), and corresponding adjustments in the circuitry

• Significantly reduced output impedance

• New parts developed by various manufacturers since the introduction of the LP2

• New PC-board material

• Super low noise power transformer

The preamplifier operates in a pure class A mode from input to output. High-current drive capability, in combination with unique single-ended class A circuitry, enable the preamplifier to drive any cable and reasonable real-world load, while maintaining its practically inaudible sonic signature. When connected LAMM amplifiers and preamplifiers (or equivalent models), it offers an extraordinary transparency of perceived sound and recreates a three dimensional soundstage within the home.

Components

All amplification stages utilize high transconductance very low-noise, high-current vacuum triodes. No loop feedback is employed.

The LP2.1 features a very accurate passive RIAA EQ network.  The preamplifier’s audibly neutral power supply features a full-wave vacuum rectifier which, with a choke-containing filter, helps reduce the hum and buzz to almost negligible levels and ensures a variety of dynamic range without coloration. A solid-state analog voltage regulator is used as a heater supply. Other features include two sets of inputs for each channel and gain/selector switches for MM and MC cartridges.

A distinctive electronic protection circuitry mutes the outputs until the LP2.1 has stabilized once switched on; it also automatically mutes the preamplifier both in case the AC line voltage drops or is interrupted and when the unit is switched off.

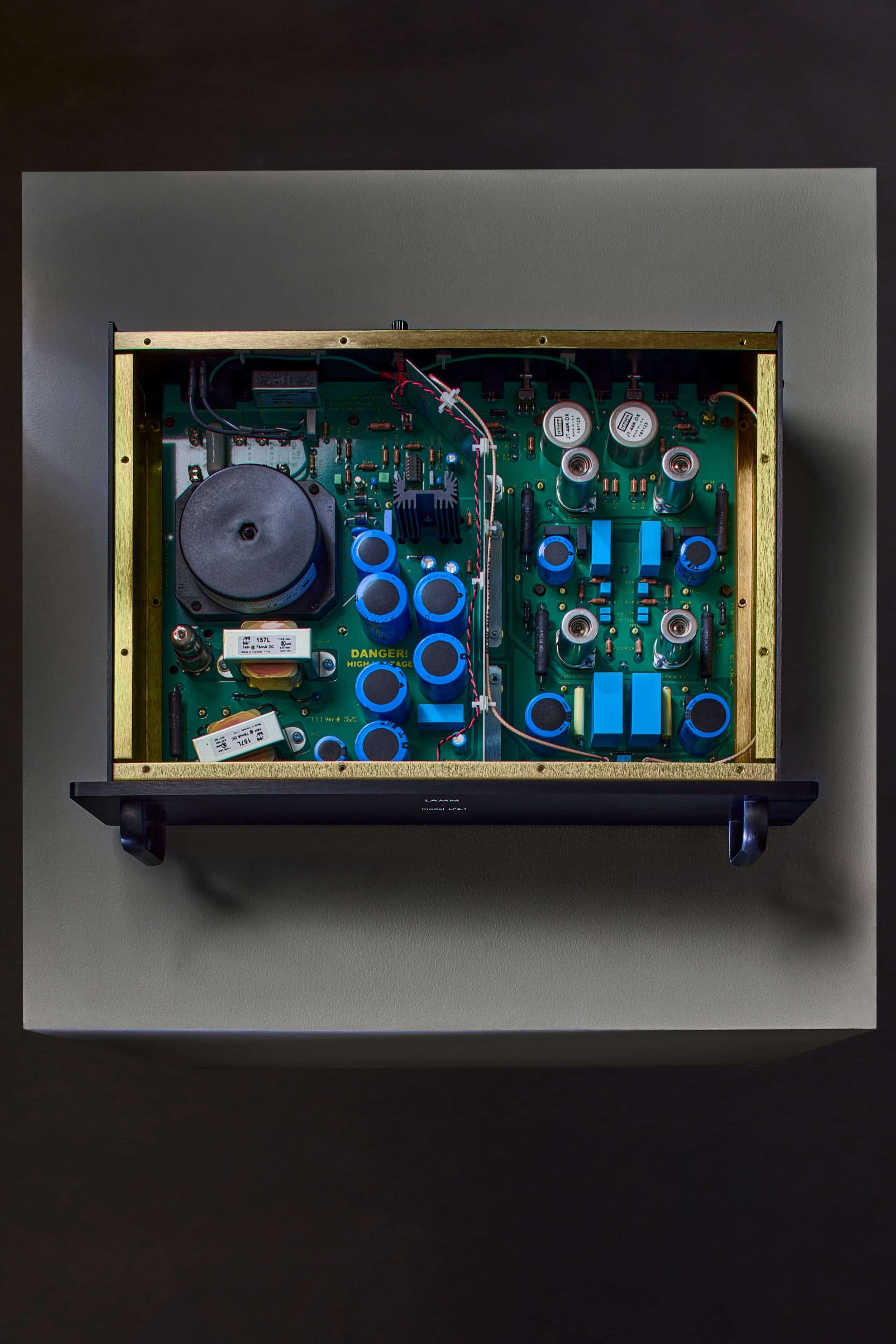

 Each preamplifier is carefully handcrafted with the finest materials, including military-grade  low noise Dale metal film resistors; 1% tolerance RCD wire-wound resistors; Electrocube and Vishay/Roederstein film capacitors; high frequency switching grade Cornell Dubilier  electrolytic capacitors; Fischer “Camac” connectors; specially selected, military-grade,  low-noise, long-life vacuum tubes; and a custom-designed, super-low noise power transformer.

The LP2.1 is especially effective for large systems with speakers of reference quality, making it possible to recreate the unique qualities of LPs. The LP2.1 is designed for use with a superior audio system and is capable of reproducing sound on par with recording studio quality or a live concert hall music event. It works well in recording studios as a reference preamplifier to control the recording process itself and the quality of LPs.

The LP2.1 is available in two versions: standard and deluxe. In the deluxe version, the power supply stores more energy; all film capacitors in signal path are bypassed by polystyrene capacitors of the highest available quality; and a custom-designed massive damping panel significantly reduces all types of mechanical vibrations which leads to a slightly more extended, coherent, and natural bass reproduction.

The LP2.1 works on all world AC line voltages.

Features

UNIQUE TOPOLOGY: Brings out the most natural sound performance in the audio path

DRIVES ANY CABLE AND ANY REASONABLE REAL WORLD LOAD: High-current drive capability, in combination with unique single-ended class A circuitry, allow the LP 2.1 to maintain its practically inaudible sonic signature.

AUDIBLY NEUTRAL POWER SUPPLY WITH FULL-WAVE VACUUM RECTIFIER AND CHOKE-CONTAINING FILTER: Practically removes hum and buzz and ensures the verity of dynamic range without coloration.

STANDARD AND DELUXE MODELS AVAILABLE: Deluxe model power supply stores more energy, all film capacitors in signal path are bypassed by polystyrene capacitors of the highest available quality, and a custom-designed massive damping panel significantly reduces all types of mechanical vibrations, leading to a slightly more extended, coherent and natural bass reproduction.

Technical Specs

• Pure class A operation: No loop feedback

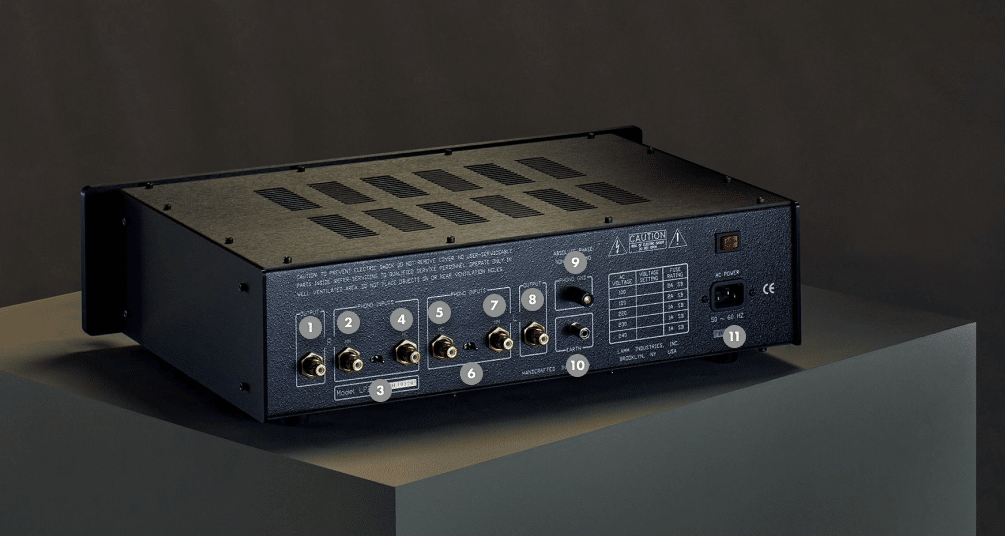

• Dual monaural pure vacuum tube phono preamplifier with 2 separate inputs for MM and MC cartridges, selector/gain switch

• All amplification stages utilize high transconductance very low noise high-current vacuum triodes

• Audibly neutral power supply features a full-wave vacuum rectifier with a choke-containing filter (two chokes are employed), and one solid-state analogue voltage regulator used as the heater supply

• Two 6C3P (6C3П) tubes

• Two 6C45P-E (6C45П-E) tubes

• One 6X4/6202 tube

• Specially designed damping panel effectively isolates all sensitive electronic components from any induced resonances

• Absolutely outstanding signal-to-noise ratio: Makes the LP2.1 one of the quietest phono preamps available on the market

• High-current drive capability & unique single-ended class A circuitry: Enable the preamplifier to handle any cable and any connected real world load, while maintaining its practically inaudible sonic signature

• RIAA accuracy (from 20Hz-20kHz): better than +0 dB / -0.2 dB

• Operates on all world AC line voltages

Dimensions

• HEIGHT: 4.5" (11.43cm)

• WIDTH: 19" (48.26cm)

• DEPTH: 13.875" (35.25cm): Add 1.375 inches for front handles.

• WEIGHT: 41.5lbs (18.84kg)

More information at https://www.lammindustries.com/products/lp21/

Please contact us for more information & prices on our high-end audio products.
