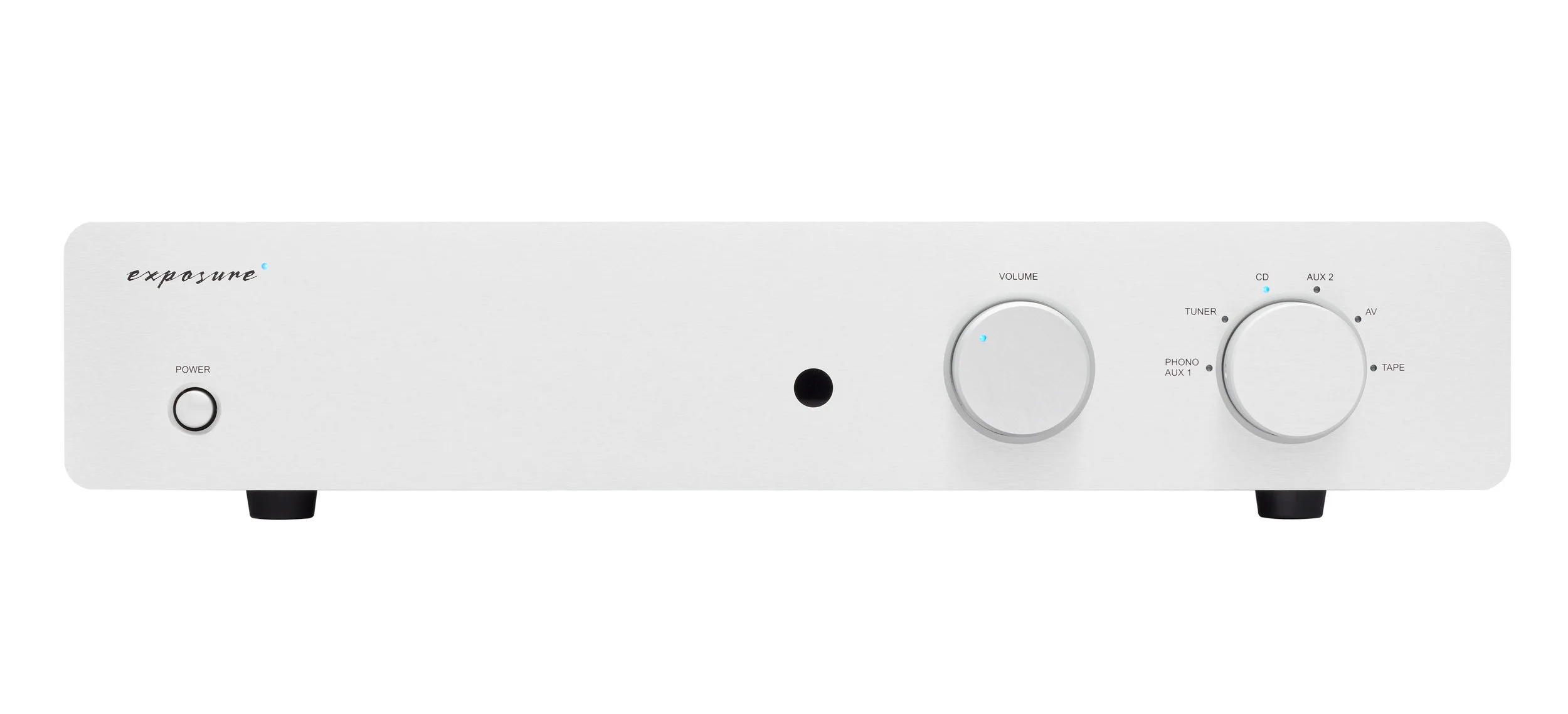

EXPOSURE 5010
PRE AMPLIFIER

Features

  1. Large custom made toroidal power transformer and multiple smoothing capacitors for power supply

  2. Option to fit a MC or MM phono module OR plug in DAC option

  3. 6 line inputs or 5 plus optional phono card, 2 main out (RCA), 1 XLR main out and 1 tape output

  4. High quality relays used for input source selection

  5. Full remote control of input selector, volume and mute

  6. Audio output stages utilising discrete transistor class A output buffer

  7. Balanced pre amp output, DC coupled

  8. High quality all aluminium case work

  9. Remote control

  10. Three year guarantee

  11. Available in black or titanium

Specifications

  • Gain (at 1KHz) : +9dB unbalanced output, +15dB balanced output

  • Sensitivity : 500mV

  • Maximum Output : >9V RMS unbalanced

  • Frequency Response : -3dB at 1Hz and 57KHz, ref 1KHz, max volume

  • Total Harmonic Distortion : <0.005% at 1.6V RMS output, 1KHz

  • Signal to Noise Ratio : >98dB, A weighted, ref 1.6V RMS output, 1KHz

  • Channel Separation : >60dB 20Hz to 20Khz (Typically >85dB at 1KHz)

  • Outputs : 2 pairs RCA, pre amp output, 1 pair for tape output

  • Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)

  • Power Consumption : <25W

  • Dimensions - H x W x D : 90mm x 440mm x 300mm (inc knob)

  • Nett Weight (unpacked) : 6kg

  • Gross Weight (packed) : 8kg
