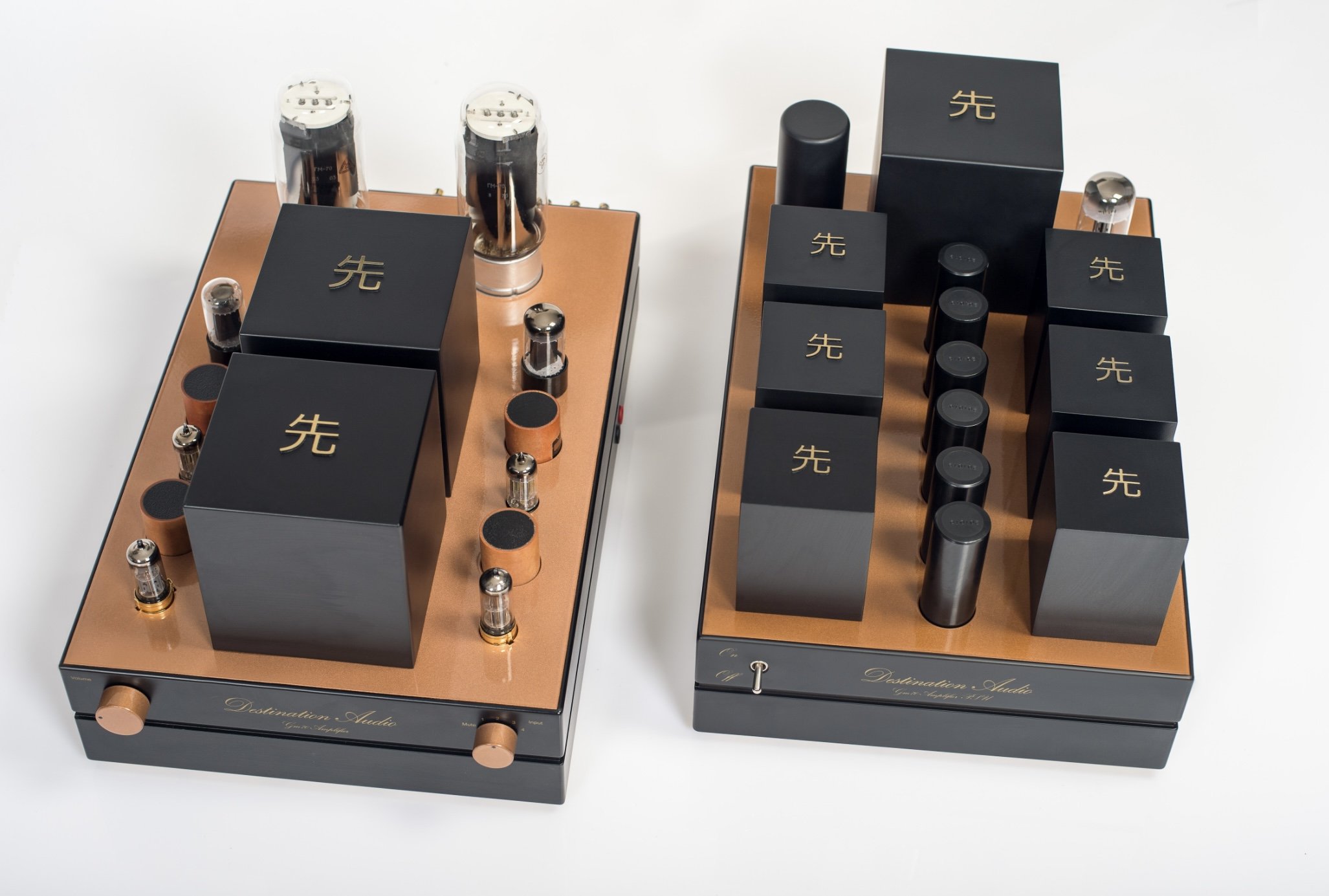

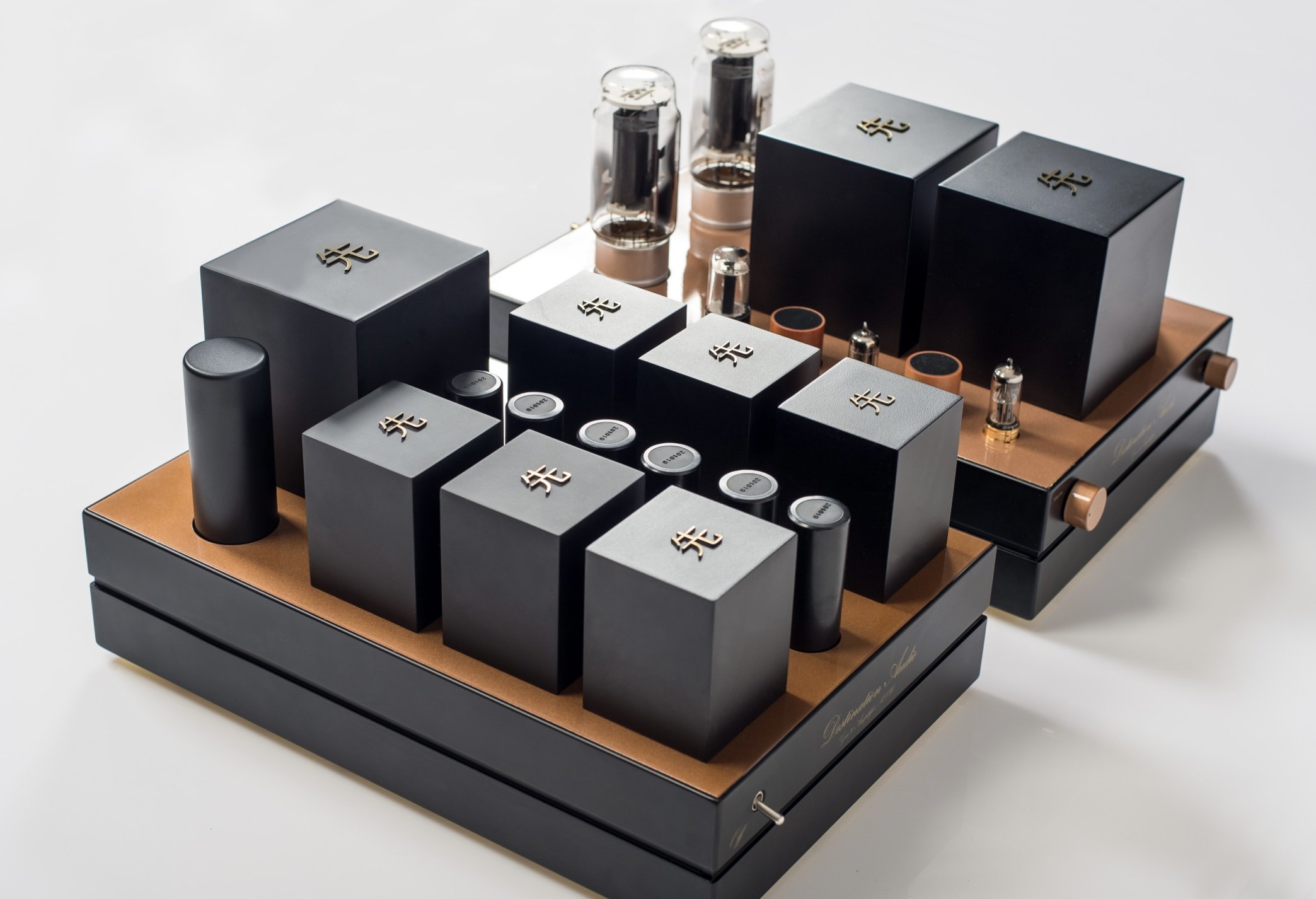

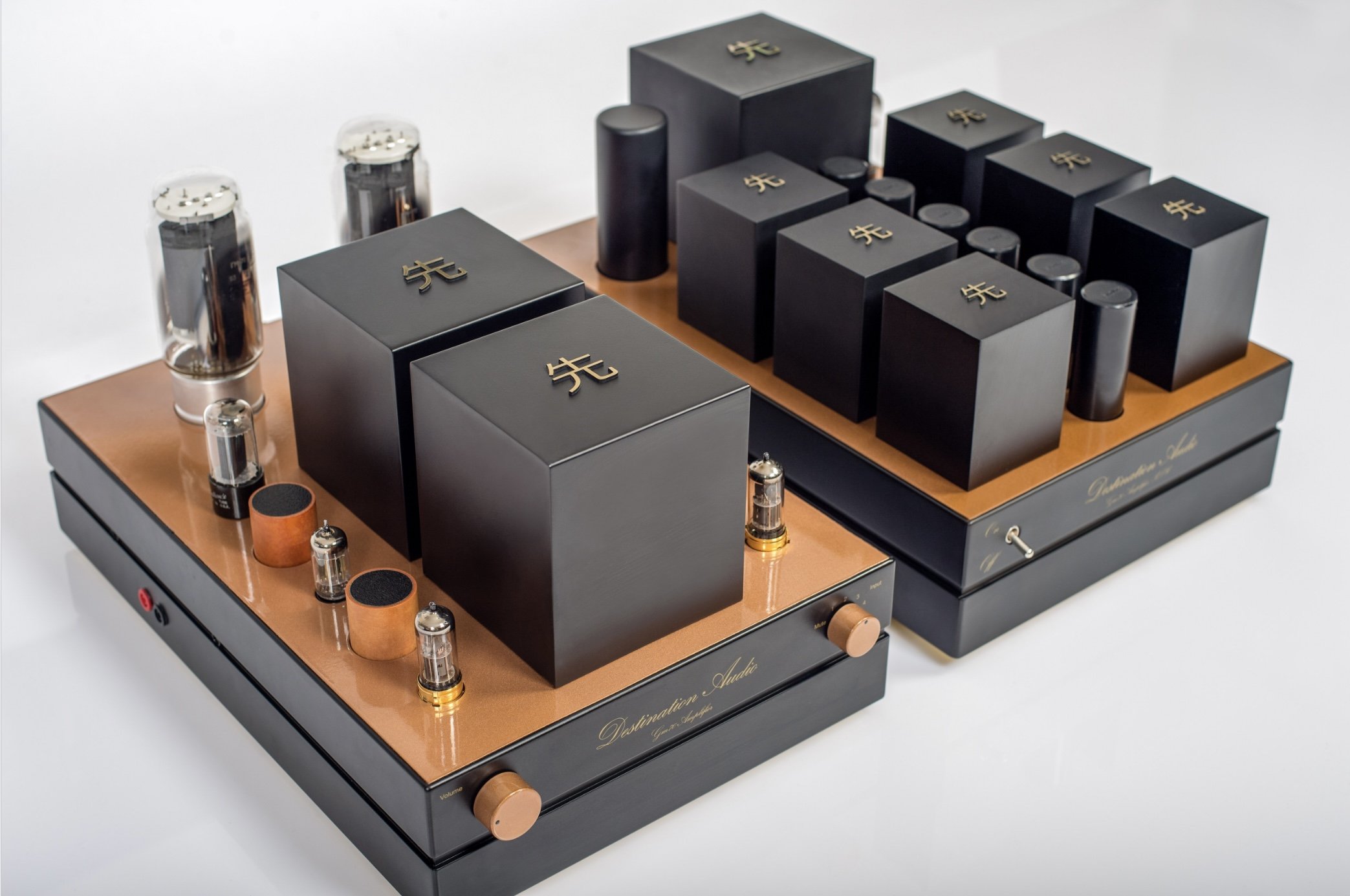

DESTINATION AUDIO GM70 INTEGRATED AMPLIFIER
Introducing the GM70 Integrated Amplifier by Destination Audio – the culmination of years of anticipation and engineering excellence. This amplifier represents the pinnacle of our audio craftsmanship, designed to elevate your listening experience to heights previously unimagined. Featuring a bridge rectifier EEC40, a 5687 dual triode, and a unique 6W6 power section (distinct from the more common 6V6), the GM70 stands as a testament to innovative design and sonic purity. Single ended Class A design with zero feedback. Amorphous double C-core custom made output transformers. Custom made power transformers and chokes. Separate Power Supply. Duelund PIO capacitors. Audio grade Japanese electrolytic capacitors and resistors. Point to point wiring, separate power supply.
Technical Specification
Power Output: 20W
Frequency Response: 10Hz ~ 85kHz (-1.5dB)
Total Harmonic Distortion (THD): 1% (1 kHz)
Signal-to-Noise Ratio (S/N): 87 dB
Input Impedance: 100 kΩ
Output Impedance: 4Ω and 8Ω
Power Requirements: USA 115V (60Hz) / EU 235V (50Hz)
Tubes: ECC40 x2, 5687 x2, 6W6 x2, GM70 x2
Power Consumption: 350W
Dimensions
Width: 312 mm / 12 in
Height: 255 mm / 18 in
Depth: 466 mm / 18 in
Weight: 75 kg / 165 lbs
More information at destinationaudio.eu
